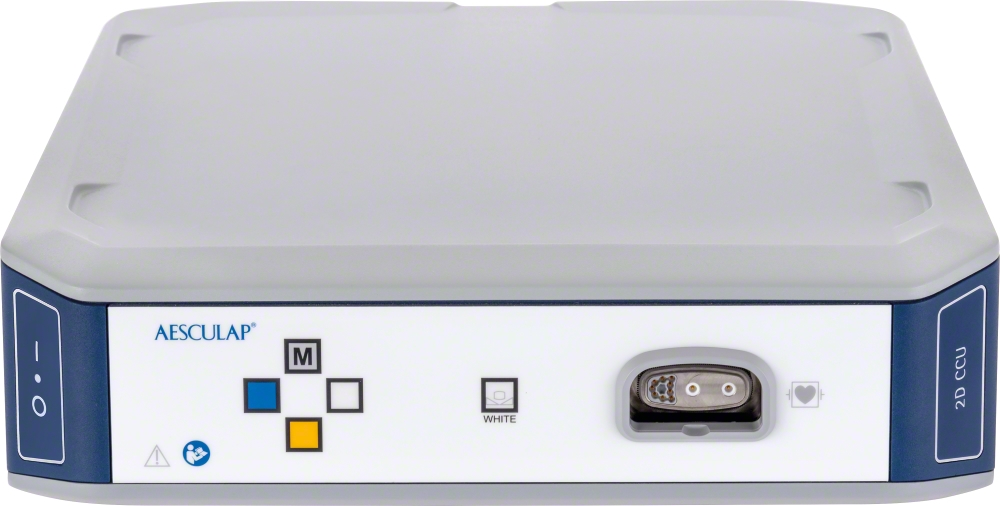

2D CAMERA PLATFORM | B. BraunPV4802D CAMERA PLATFORM
Secção Adicionar ao carrinho
- Tipo de Procura do Produto
- Unidade de controle da câmera
- Aesculap - Grupos de Produto
- Tecnologia endoscópica
- Familia de Produtos
- Equipamento
- Saídas de Signal Vídeo
- 3G-SDI 1080p, HD-SDI 1080i, 720p (60 Hz), DVI-D 1080p (60 Hz)
- Resolução Horizontal (Linhas)
- 1920
- Modo de Avaliação
- progressive
- Modos
- 5 presettings
- Função das Teclas
- individually adjustable
- Barra de Cores
- Sim
- Peso CCU
- 7.0 kg
- On-screen display
- Sim
- Power supply
- 100-240 V AC, 50/60Hz
- Consumo de potência máxima
- 60.0 VA
- ser usado com (código)
- PV482, PV481, PV485
- Disciplina
- Urologia, Artoscopia, Cirugia do Cardíaca
- Nível de proteção acc EN_60601
- CF
- Classe de segur. de acordo c/
- I
- Testado de acordo com as norma
- EN 60601-1-2, EN 60601-1
- Produto (embalado) contém Late
- Não
- Esterilização
- não estéril
- Descartável / Reutilizável
- reutilizável
