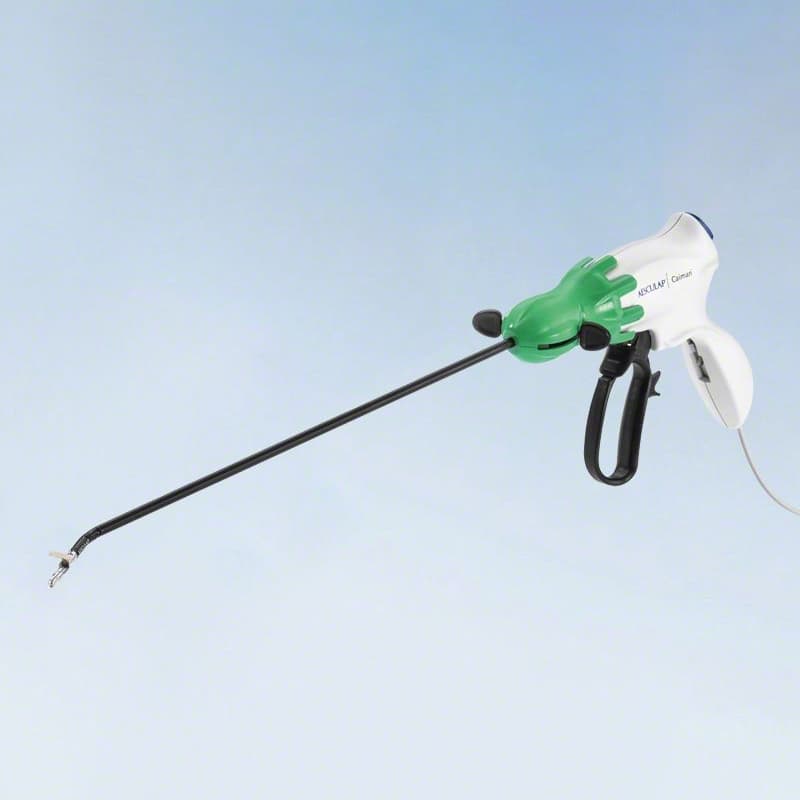

Caiman® 5 Articulating Maryland

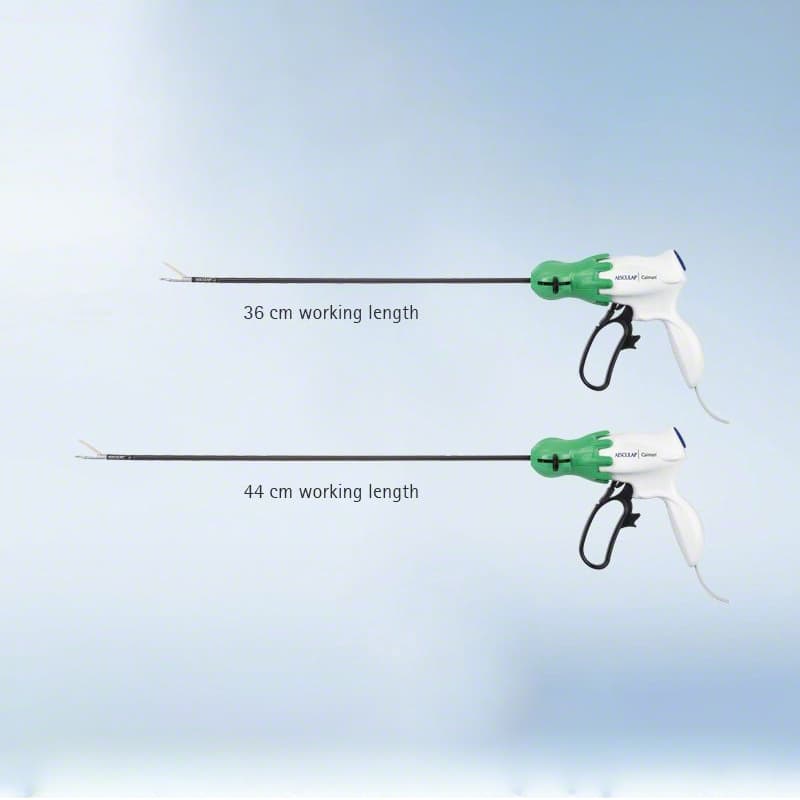

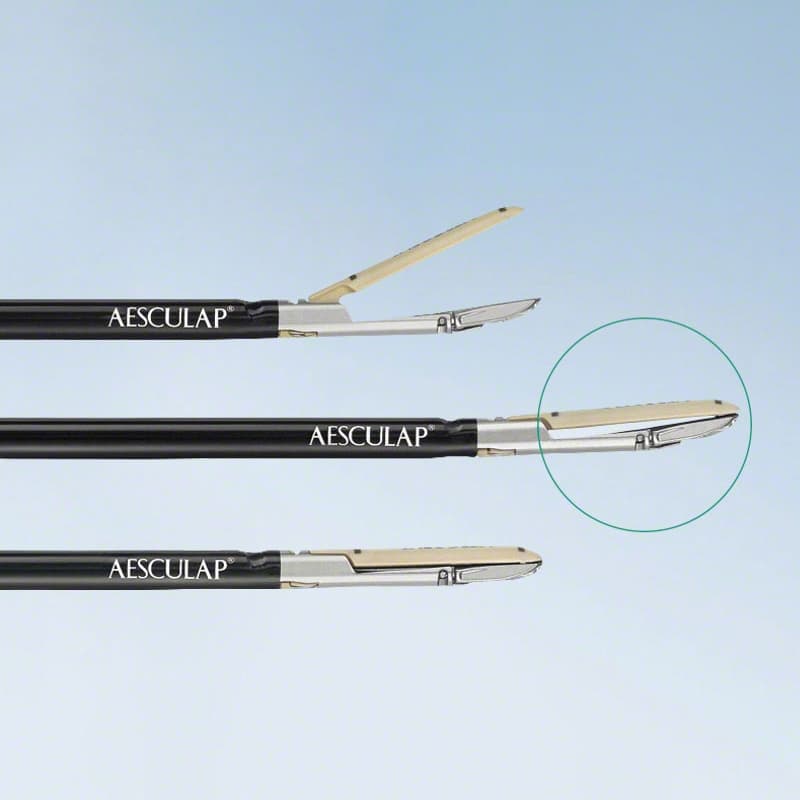

Caiman® 5 Articulating Maryland features a unique fine curved jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 36 cm and 44 cm shaft is used for a variety of laparoscopic applications with articulating tip.
The fine curved Caiman® 5 Articulating Maryland vessel sealer delivers simplified navigation in challenging anatomy through the combination of increased dissection performance and enhanced tip visualization with distal tip articulation technology.
Motion freedom in small spaces
The Maryland jaw features a short articulation mechanism for easy maneuvering in small spaces.
Efficient jaw tip positioning

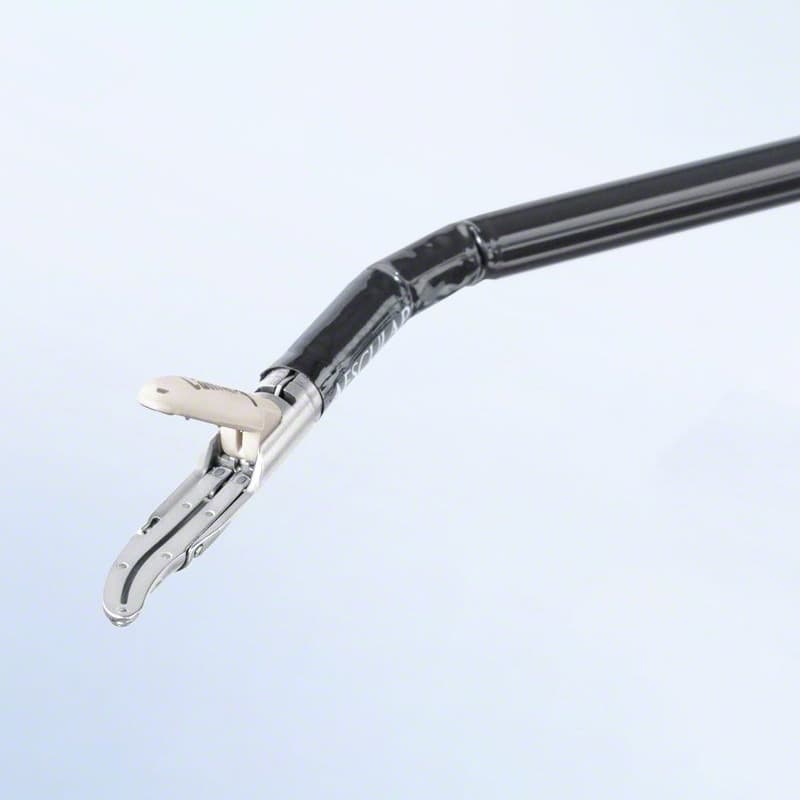

The articulating tip allows a side view jaw visualization to allow precise positioning.
Perpendicular sealing
Articulation allows jaw positioning in a 90° angle to increase the robustness of the sealing line, as a perpendicular approach ensures the shortest sealing line.
