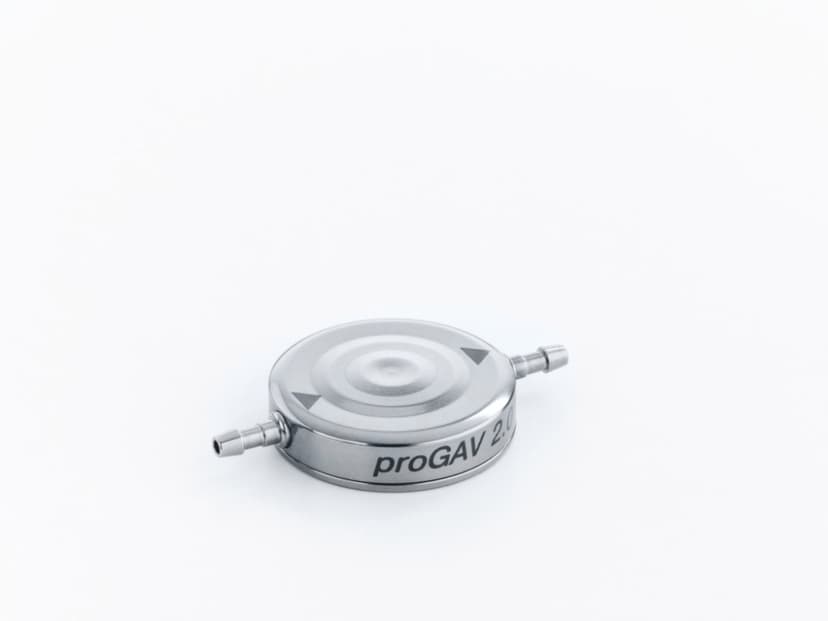

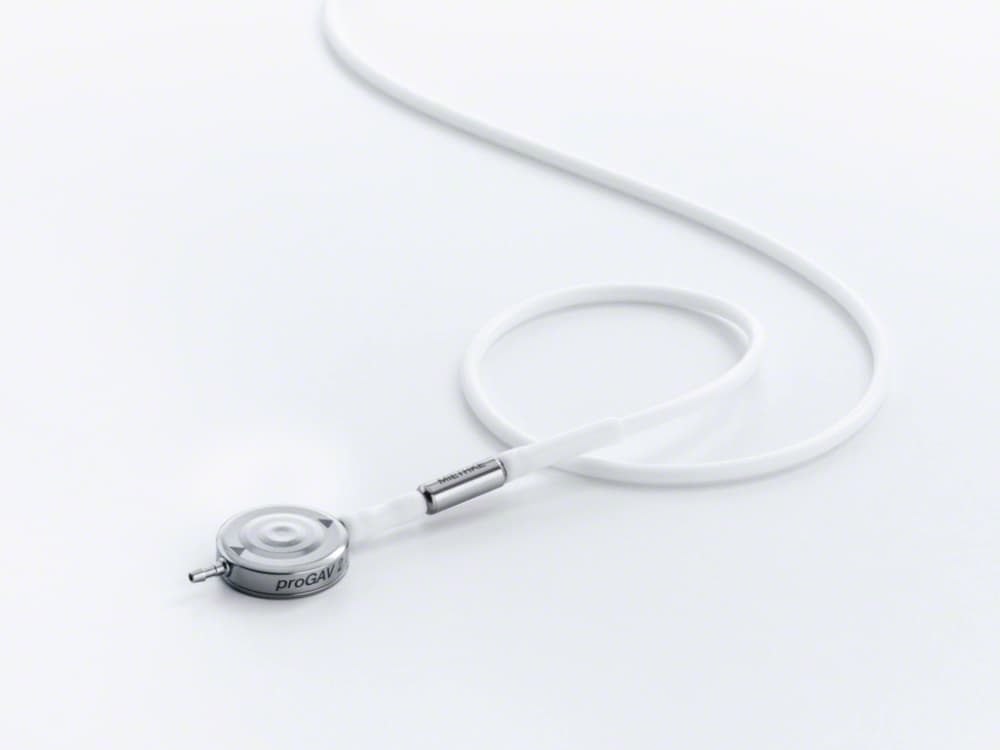

Válvula de pressão programável para tratamento de hidrocefalia com unidade gravitacional
As válvulas gravitacionais MIETHKE fornecem uma solução confiável na prevenção a hiperdrenagem [1], [2] associadas ao tratamento da hidrocefalia.
proGAV® 2.0 representa um desenvolvimento em nossa tecnologia proGAV® existente, para melhor atender às necessidades de nossos clientes e seus pacientes.
proGAV® 2.0 oferece a confiabilidade de nossa tecnologia existente, com um novo mecanismo de “feedback” tátil e programação “Soft-Touch”.
A unidade regulável foi desenvolvida com uma superfície especial: Usando uma leve pressão com o dedo, o mecanismo “Active-Lock” da válvula é liberado e um feedback tátil é recebido.
A combinação da refinada tecnologia proGAV® e programação “Soft-Touch”, proporciona conforto aos pacientes e segurança contra reajustes não intencionais causados por campos magnéticos de até 3 Tesla [3].
Com a nova bússola proGAV® 2.0 a pressão de abertura da válvula pode ser identificada rapidamente, sem a necessidade de expor o paciente ao raio-X.
