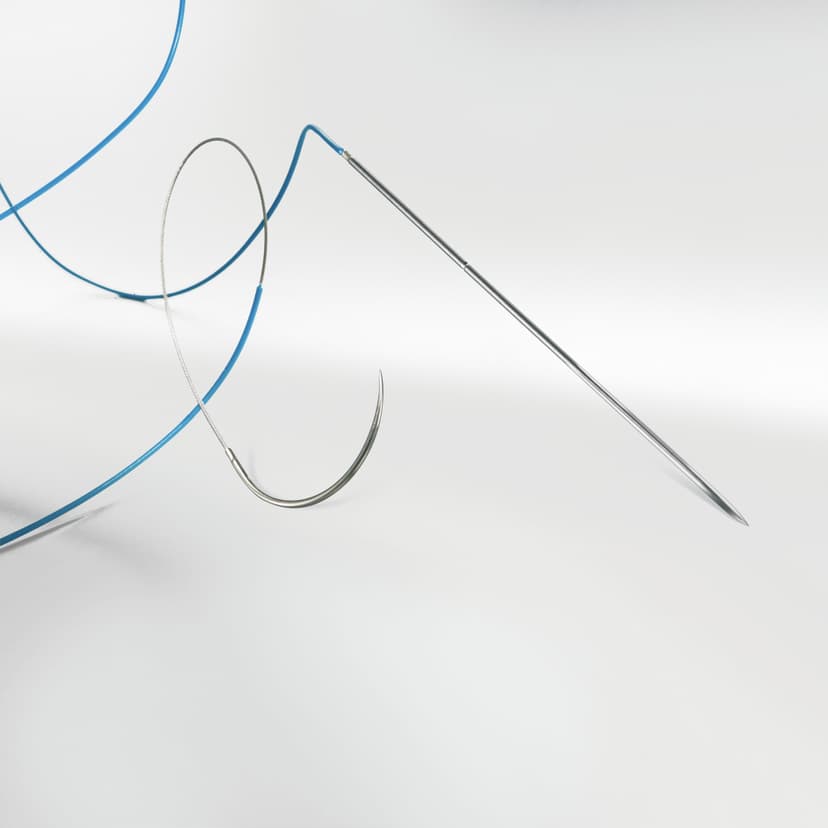

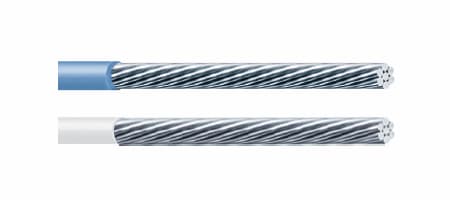

O Electrode Set é um fio de estimulação cardíaca temporária, unipolar, usado para tratar arritmias durante e após a cirurgia aberta de coração. Trata-se de um aço inoxidável trançado, fio multifilar parcialmente insuflada com uma bainha de Polietileno azul.
